My Car: Outlets and USB Ports

I like working on my car. Sometimes it’s necessary repairs, other times it’s modifications or upgrades just because I want to.


My car, a 1997 Honda Civic, comes with only one accessory outlet. For an upcoming trip I’m going to need more than that, so I decided to add a second outlet and a USB charger hard mounted into the dash. This is the trim piece under the radio and HVAC controls; you can see where the stock outlet goes.

2017_02_02_02

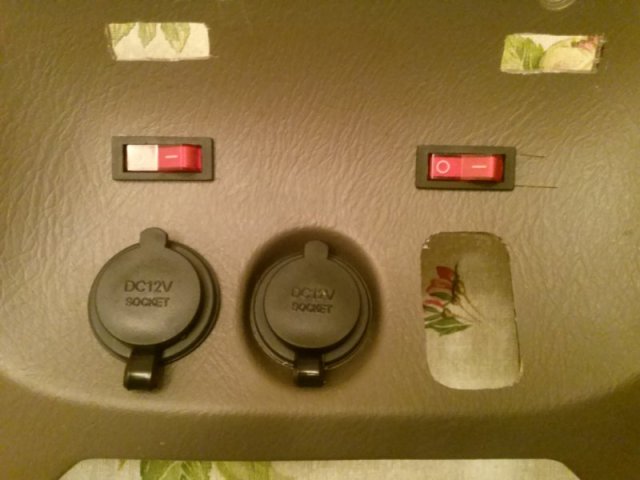

I got two new surface-mount outlets, as well as two lighted switches. The outlet that replaces the stock on will be turned on with the key like before, but I needed a way to turn the new outlet and the USB charger on and off. I got lighted switches so I can tell if they’re on or not to make sure I don’t accidentally leave them on. The two rectangular holes you see at the top of the picture were the first holes I cut for the switches before finding out that the switches would run into part of the dash structure, so I had to move them down.

2017_02_02_03

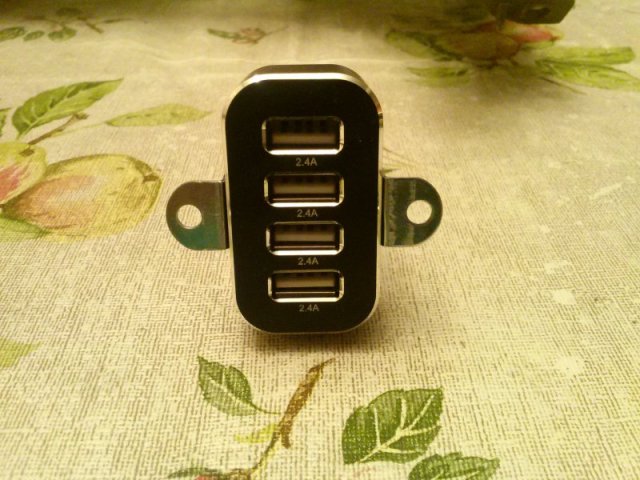

This is a four port USB charger from Monoprice. I superglued angle brackets onto the sides so I can screw it onto the trim piece, and I got a non-mountable outlet for it to be plugged into behind the panel.

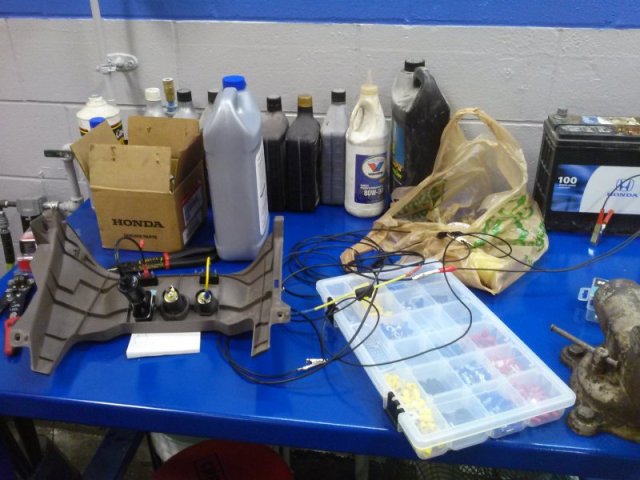

I spent some of my extra time at work wiring it all up.

2017_02_02_05

The switches came without any instructions so I had to figure out the correct wiring so the lights would turn on when the switch was turned on. I wrote the correct wiring down on the back of the trim piece for future reference.

2017_02_02_06

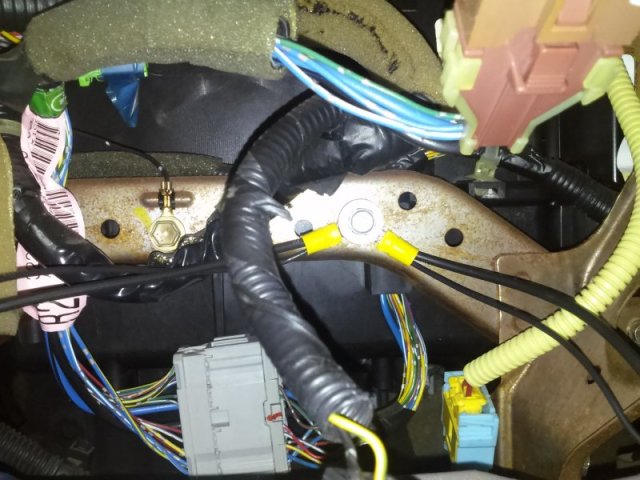

The new outlets needed a ground point, and there just happened to be a good place to on the dash structure right behind where the outlets go. I could tell that it would be a good ground because there was already a ground wire from something else attached to it.

2017_02_02_07

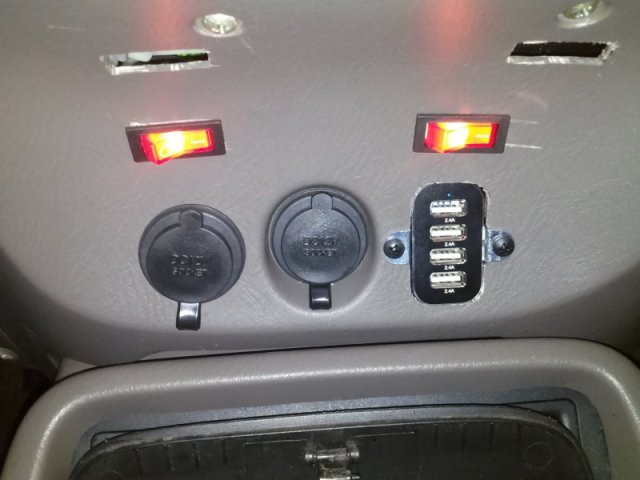

And there it is, all wired and installed. On an upcoming road trip I’m planning to use most of this, with an FM transmitter plugged into one outlet, a laptop charger into the other, and possibly two GoPros being charged by two of the USB ports.
