More Good Engineering

A while back I made a post about how Honda CR-V subframes have a hole in them that allows you to easily reach a bolt on the exhaust pipe. I recently encountered another place where maintenance was clearly considered during design.

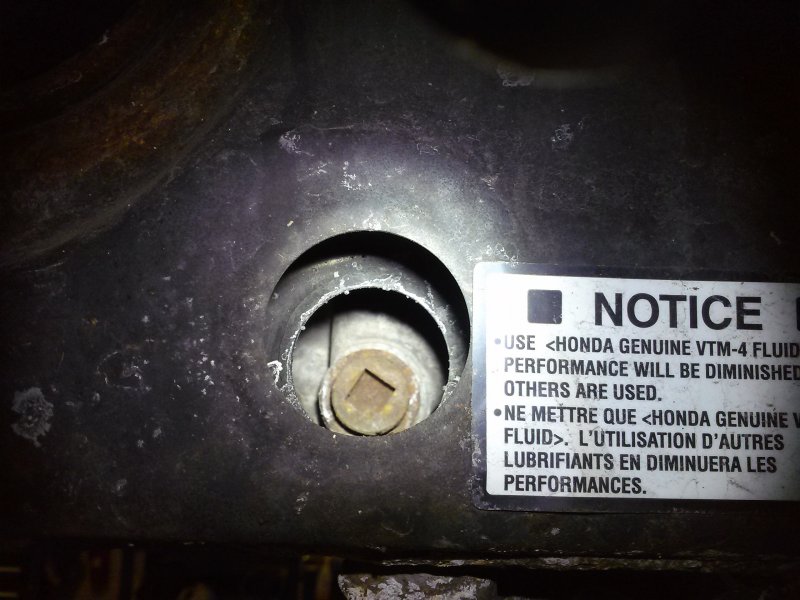

This is the rear subframe on a Honda Pilot, with an access hole for the drain plug of the rear differential. You could get to it without the hole, but there’s also a fill plug higher up, and that would be hard to reach without the hold provided for it as well. Mechanics give engineers a lot of flak for annoying designs, but here’s another that’s very helpful.


New blog posts every Monday and Thursday, plus pictures throughout the week on Facebook, Twitter, and Instagram!

Mechanical Malarkey stickers available for $5 anywhere in the US!

-Dan
