Capless Fuel Filler Seal Failure

Most customers that come into the shop to get a problem diagnosed don’t know what the actual problem is, just the symptoms. Sometimes people come in and tell us what they think the problem is, but they might not be correct. This was one time a car came in and the information they gave us was correct.

The 2016 and newer Honda Civics have the new capless fuel fillers. The car that came in had the check engine light on, and either the customer or another shop had read the code and found that it was an evaporative emissions control system leak. They also had found a small round seal sitting behind the fuel door, next to the capless filler port.

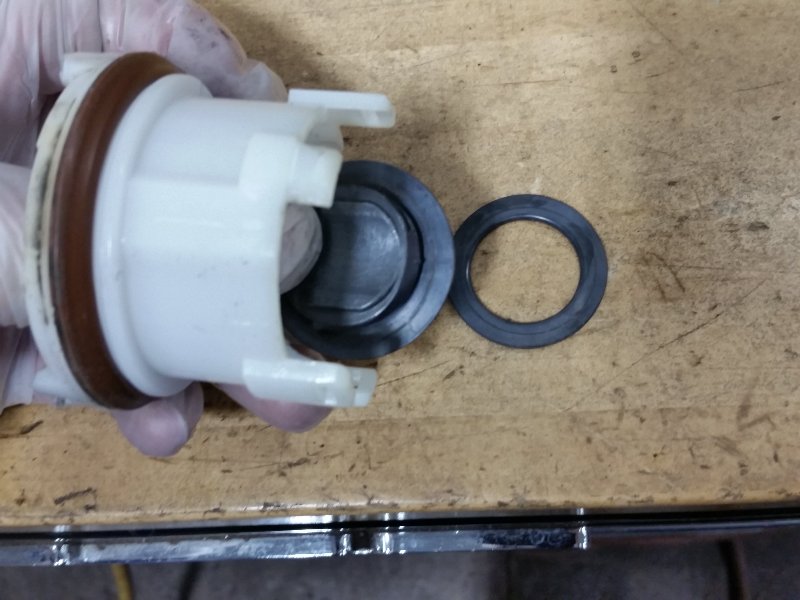

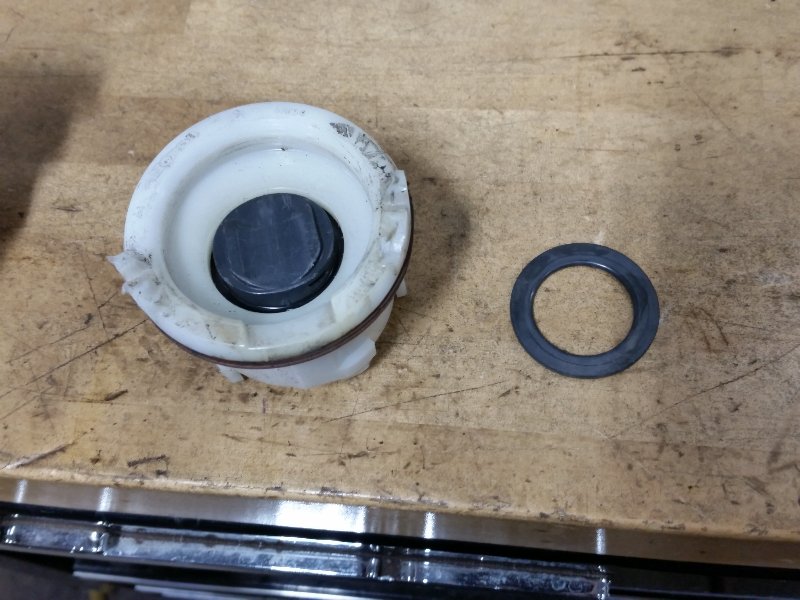

There is an outer flap and then an inner flap that actually seals the filler neck. Somehow, the seal on that inner flap had come off, and then come out of the assembly altogether. I’m not sure how that happened, but if it hadn’t, I would’ve had to spend a lot more time trying to find where the system was leaking.

New blog post or video every Monday, plus pictures throughout the week on Facebook, Twitter, and Instagram!

Watch Mechanical Malarkey on YouTube!

Mechanical Malarkey T-shirts, hats, and stickers are available to order!


This entry was posted in In The Shop and tagged , . Bookmark the permalink.

2 Responses to Capless Fuel Filler Seal Failure

  1. Whitney says:

    Do you know what this gasket is called? I am sure this is what I need but I can not find it anywhere.

    Thank you!


    • Dan says:

      It only comes on the whole new part which requires special tools to replace. The parts are called the shutter set or mis-fuel inhibit device.
