How To: MTD Yard Machines Series 611 Snow Thrower Belt Replacement

I recently bought a used Yard Machines snow blower and it needs new belts. Here’s how to replace them.

2019_12_05_01

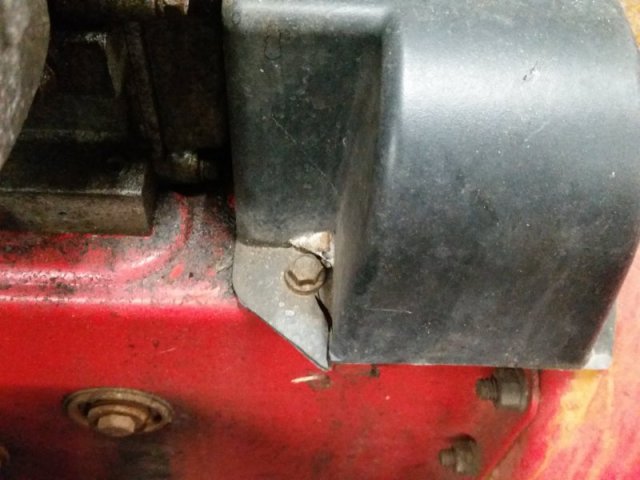

Start by removing the belt cover in front of the engine. There are two 3/8 bolts , one on each side.

2019_12_05_02

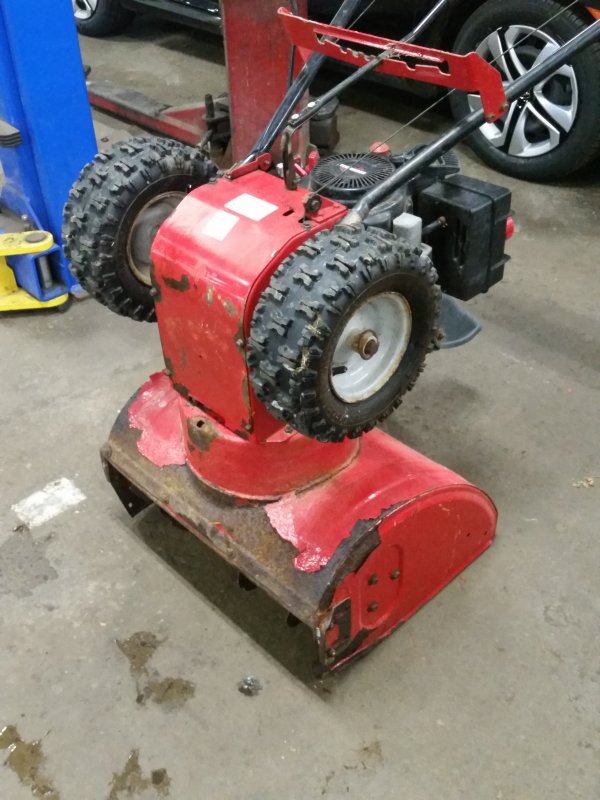

Empty the gas tank or seal it with a plastic bag under the cap, and tilt the snow blower up onto the front end.

2019_12_05_03

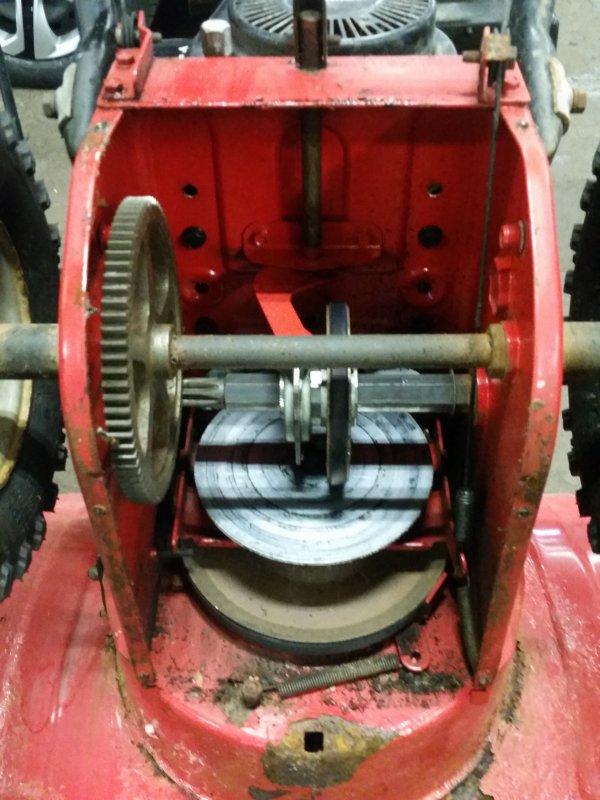

Remove the six 3/8 bolts holding the bottom cover.

2019_12_05_04

The auger belt is on the bottom.

2019_12_05_05

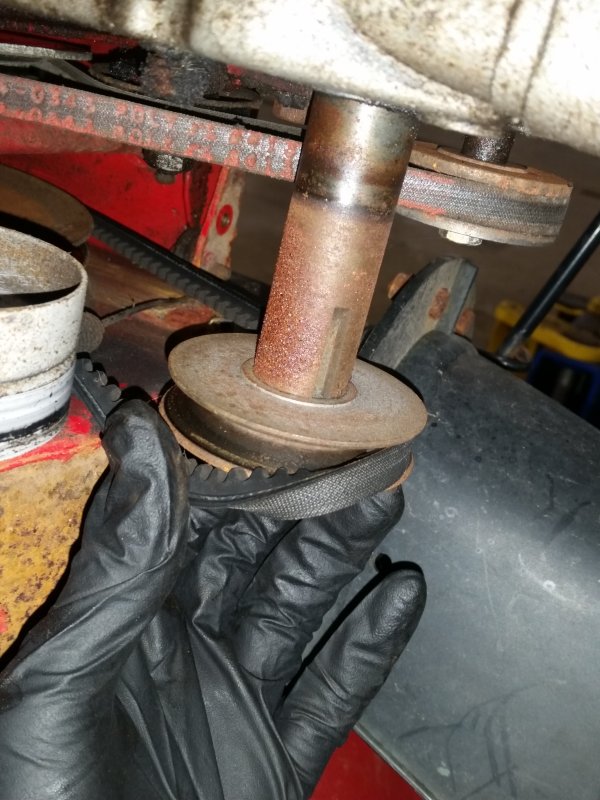

Roll the belt off the drive pulley.

Release the two springs.

2019_12_05_08

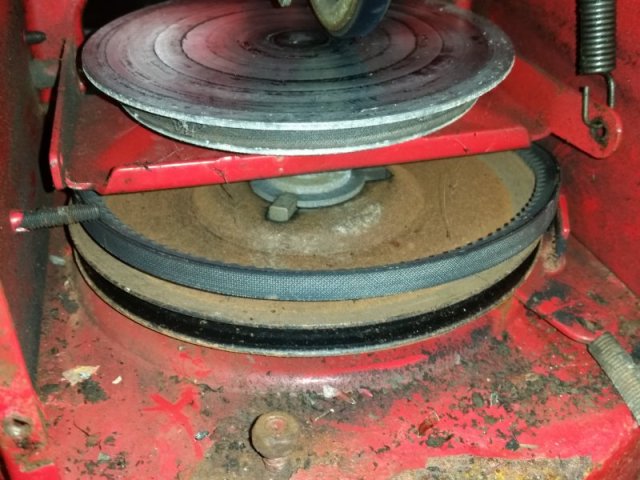

Pull the belt up and off the driven pulley. Install the new belt in the reverse order.

2019_12_05_09

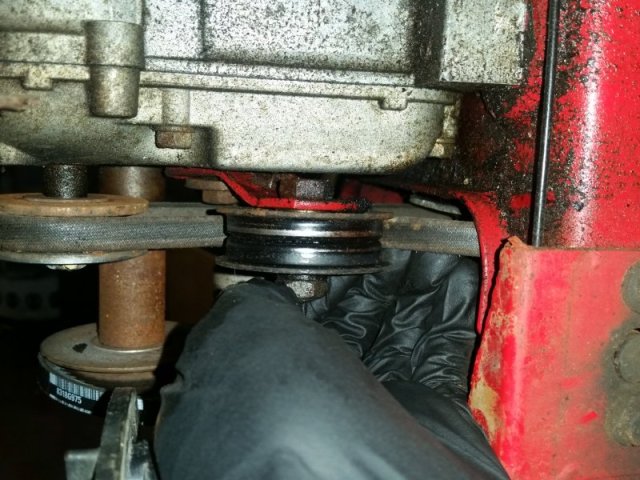

To replace the drive belt, pull the tensioner pulley by hand to remove tension from the belt, and remove the belt from the drive pulley.

Loosen this bolt from the outside of the snow blower to allow the plate to move downwards.

2019_12_05_12

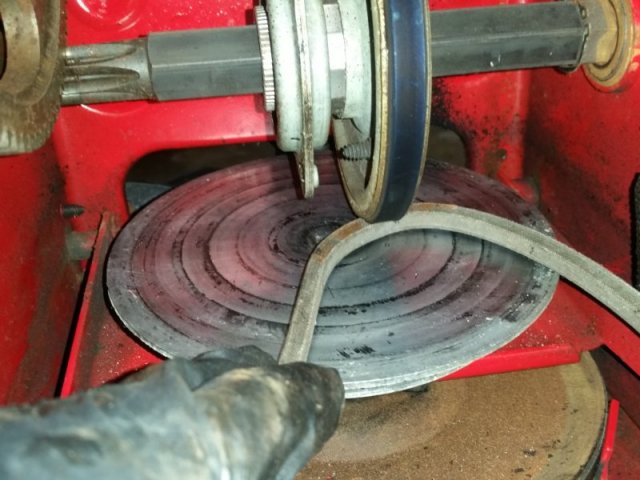

Push down on the driven pulley and pull the belt between the pulley and the drive wheel. Install the new belt in the reverse order.
