Plastic Tool Tray Reinforcement

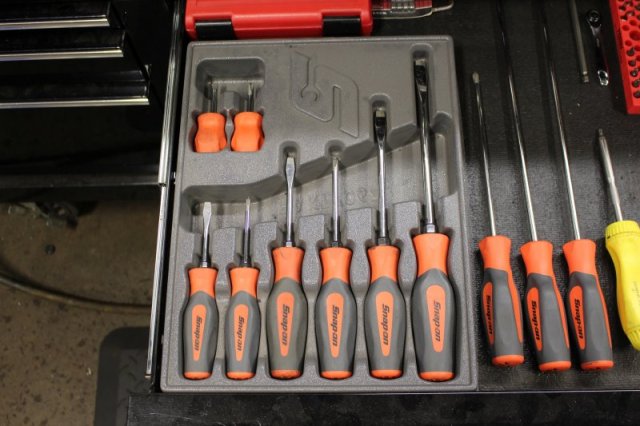

Some tools, like screwdrivers, prybars, or special sets like brake tools, come in molded plastic trays made specifically for those tools. If you have room in your toolbox, these can keep things organized really well.

2017_08_17_01

2017_08_17_02

The only downside is that over time they can break, because they’re only thin plastic. There’s not really much structure to them, especially in large empty areas like this screwdriver tray.

2017_08_17_03

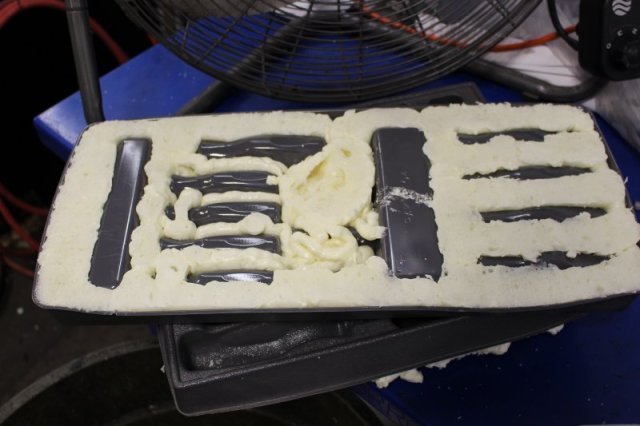

One of my coworkers told me about something he saw recently. To make these trays last a really long time, you can fill the backside with expanding foam, like Great Stuff. One can filled all but one of the trays I have in my toolbox.

2017_08_17_04

The hard part was shaving down the extra off the back once it had cured. My coworker said he used a reciprocating saw with a long blade. I ended up using a camp saw for the majority and then a serrated pocket knife to finish off the rest. I couldn’t get it all flat like I wanted, but it worked pretty well. The other problem I ran into was trying not to damage the plastic trays, because the saw would tear right through them.

2017_08_17_05

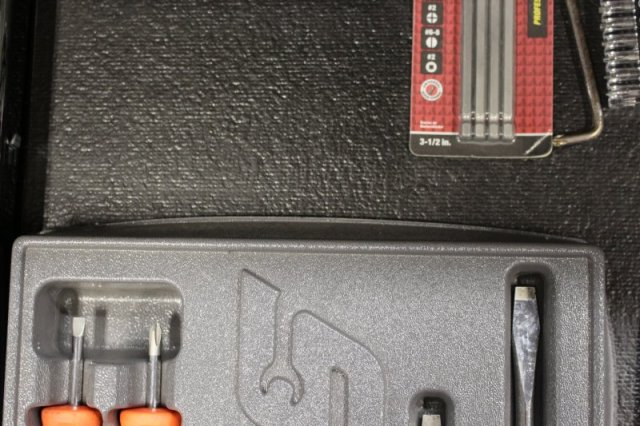

Because I’m a bit of a perfectionist this bugged me, but most people are probably fine with it. Because there was nothing to hold against the pressure, the sides of some of the trays got pushed outwards by the expanding foam. My main problem with this is it prevents the trays from sitting as flush with the sides of my drawers. Overall it’s a pretty good idea and I’m happy that these should last for many years now.


New blog posts every Monday and Thursday, plus pictures throughout the week on Facebook, Twitter, and Instagram!

Mechanical Malarkey stickers available for $5 anywhere in the US!

-Dan
