How-To: 1997 Honda Civic Noisy Idler Pulley

My car’s engine began to make a high-pitched squealing noise at times, and I tracked it down to the idler pulley for the AC compressor belt.

2016_10_27_01

To replace the pulley required a bit of flexibility and squeezing in tight spots. I had to remove the power steering belt and pump from its bracket and move it out of the way, then used an extra long ratcheting 14mm wrench to remove the nut from the pulley.

2016_10_27_02

This is the tensioner assembly that the idler pulley rides on. I had to unbolt it because I also bought a new bolt for the pulley to go on. When tensioning the belt you loosing the not and screw the long bolt in or out to tension the belt. The tensioner is held on by two bolts.

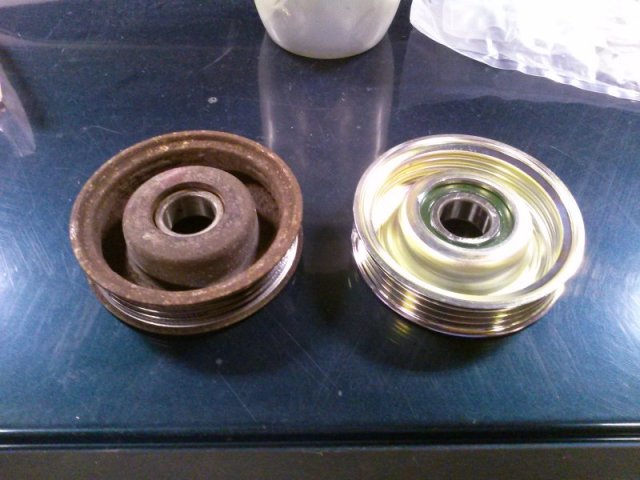

2016_10_27_03

The old pulley next to the new pulley. The new one spins freely, while the old one has a lot of resistance and notchiness.


New blog posts every Monday and Thursday, plus pictures throughout the week on Facebook, Twitter, and Instagram!

-Dan
