DIY Workbench

Last summer, after I’d moved my toolbox to the dealership, I needed a workspace in the garage. I found this design online and made a few changes to it, with a few mistakes.


A 2 foot by 4 foot workbench fit perfectly in the space I had, so all the materials I needed were six 8-foot 2x4s, a 2×4′ sheet of 1/2″ plywood, and a 2×4′ sheet of 1/4″ plywood. 8 foot boards fit perfectly in my car, going from the back of the trunk right up onto the dashboard by the windshield.

2016_06_09_02

First I assembled the top of the bench, very simple with just two 4′ pieces of wood for the front and back, and four pieces going between, and everything screwed together.

2016_06_09_03

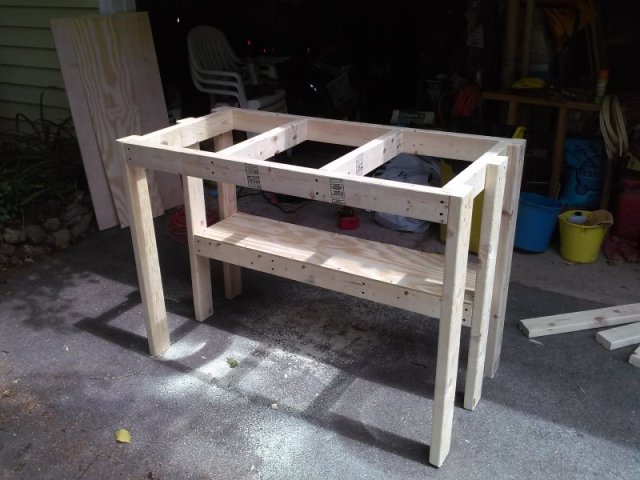

Then I put together the shelf for the bottom, only 1′ deep, with half of the sheet of 1/4″ plywood. There are six legs, the ones in between are to support the lower shelf.

2016_06_09_04

The biggest mistake I made was that the side of the lower shelf should’ve been 2 foot pieces, so they would reach the front legs and keep them strong. They don’t have any bracing otherwise.

2016_06_09_05

To finish it off, I put the whole 2×4′ sheet of 1/2″ plywood on the top and screwed it down. It’s a really nice, sturdy workbench. I hadn’t done much building with wood before, so I’m looking forward to doing more projects like this.


New blog posts every Monday and Thursday, plus pictures throughout the week on Facebook, Twitter, and Instagram!

-Dan
